LoginRadius Google Assistant Demo

Google Assistant is an artificial intelligence-powered virtual assistant developed by Google that is primarily available on mobile and smart home devices. Unlike the company's previous virtual assistant, Google now, the Google Assistant can engage in two-way conversations.

Actions on Google is the official collection of tools, documentation, and APIs for development on the Google assistant service. This document takes you through the process of configuring our Google Assistant Demo that goes over the account linking process.

Prerequisites:

  • Node.js needs to be installed on your system.
  • Npm needs to be installed in your system.
  • Also, make sure that the Google account which you are using to configure this demo has Web & App Activity enabled in the Activity Controls.

Configurations​

  1. Go to the Actions on Google Console.

  2. Create a new Project by clicking Add/import project and provide a name e.g. Login Demo, hit Create Demo once you're ready.

  3. Go to SETUP > Invocation in the left nav, input your invocation name and Directory title, (we recommend using the same name for both)

  4. In your Actions on Google Project navigate to Advanced Options > Account linking in the left menu and follow the step-by-step instructions from here (https://console.actions.google.com/u/0/).

  5. In the Account creation field, select No, I only want to allow account creation on my website.

  6. In the Linking type field, choose OAuth and Authorization Code from the available dropdown.

  7. In the Client ID field, enter << Your LoginRadius API Key >>.

  8. In the Client Secret field, enter << Your LoginRadius API Secret >>.

  9. In the Authorization URL field, enter the URL: https://cloud-api.loginradius.com/sso/oauth/redirect

  10. In the Token URI field, enter the URL: https://cloud-api.loginradius.com/sso/oauth/access_token

  11. You can leave Scope field blank or you can provide desired scopes as per our LoginRadius OAuth 2 Single Sign On. For example, r_basicprofile.

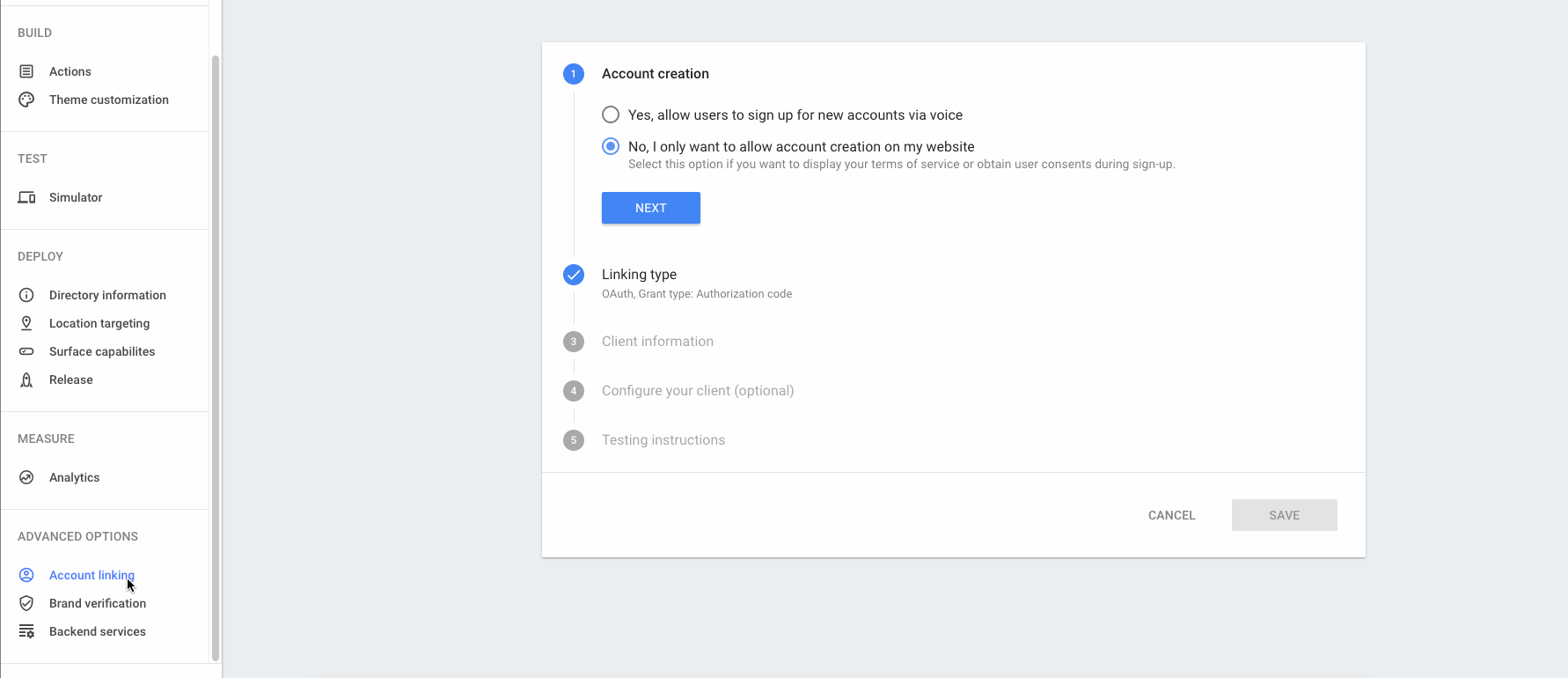

  12. In the Testing Instructions field, add a working test email and password stored in LoginRadius. Refer the following gif explaining how to configure the above fields: Steps to Set Up Account Linking

  13. From your Action on Google console you will need to get to the action's Dialogflow console, you can do this by going under Build > Action.

  14. In the Dialogflow console, click on Create on the top.

  15. Go to Intents in the left menu, click on Create Intent to create a new intent.

  16. Enter your training phrases. Start with talk to, speak to, ask etc. Refer to here for more.

  17. Enter the default text response. This will be the default response for your action until you link your account with LoginRadius and build your customized response.

Note: It will return an error if you leave this blank.

  1. Under Fulfillment and click on ENABLE FULFILLMENT.
  2. Enable the Enable webhook call for this intent option.
  3. Click on the Save button once you're finished.
  4. Click on Integrations in the left menu, then click on Google Assistant.
  5. In the Explicit Invocation field, add your invocation/training phrase. For exaample, talk to, check sign in required checkbox.
  6. For the next steps, you will need to deploy the demo explained in the next section.

Deploying and Executing the Demo​

  1. Clone the github repo for the demo.
  2. Configure the file index.js to match your API Key.
  3. In your terminal:
    • Run the command cd to directory
    • Run the command npm install
  4. Install node.js and run node index.js` through command line to start your server.
  5. In your LoginRadius Admin Console, whitelist your server's secure URL: https://oauth-redirect.googleusercontent.com
  6. Under Build > Action go to Dialogflow Admin Console and click Fulfillment on the left side menu, and enable the Webhook option, enter the secure URL to your server and click on Save button.

Testing​

Now that everything is in place, you can either test using the Actions Simulator by clicking "TEST" or via a Google Home device. If you use the Google Simulator and would like to test Account Linking, the simulator will not be able to return the login URL to your phone's Google Home app, instead, you will need to go the Simulator's DEBUG section on the right, and you should be able to find the link under 'debugInfo'.
