LoginRadius as IdP with Office 365 as SP

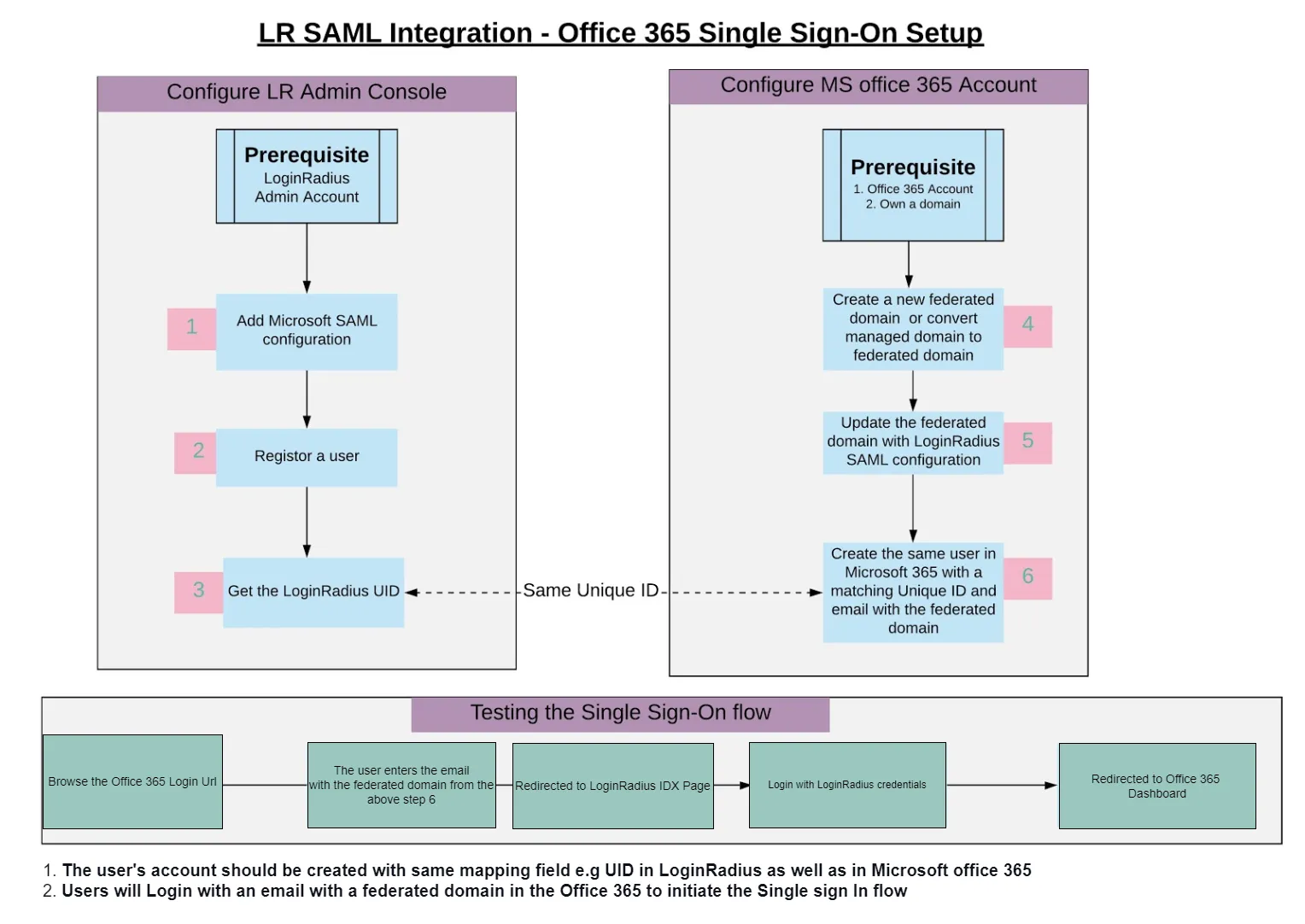

This document describes the step by step process to integrate office365 as an SP and LoginRadius as an IDP in service provider-initiated SAML workflow.

Before you get started you should ensure that you have the following prerequisites:

1. An administrator account for Office 365.

2. SAML feature is enabled for your account in LoginRadius Admin Console.

3. A domain name that you own for Office 365.

4. Windows PowerShell with the Azure AD PowerShell module installed.

5. A public certificate and private key pair are required to successfully connect applications with LoginRadius. Click here to Learn how to manage certificates and private keys.

6. You must generate a public certificate and private key pair to connect an application to LoginRadius.

• To enable single sign-on using SAML workflow between LoginRadius and Office 365 users can only login with the email address of the federated domain in Office365.

• The ImmutableId and email address for the user in Office365 should match Uid and email address in LoginRadius respectively.

This section covers everything you need to configure in your LoginRadius Admin Console.

NOTE: If you have enabled or added a Custom Domain for your existing application, please be aware that you should replace the URL https://<LoginRadius Site Name>.hub.loginradius.com/ with https://<Your Custom Domain>/ in fields such as Issuer, EntityID, Login and Logout URLs, or any fields having the same format.

1. Login to your LoginRadius Admin Console.

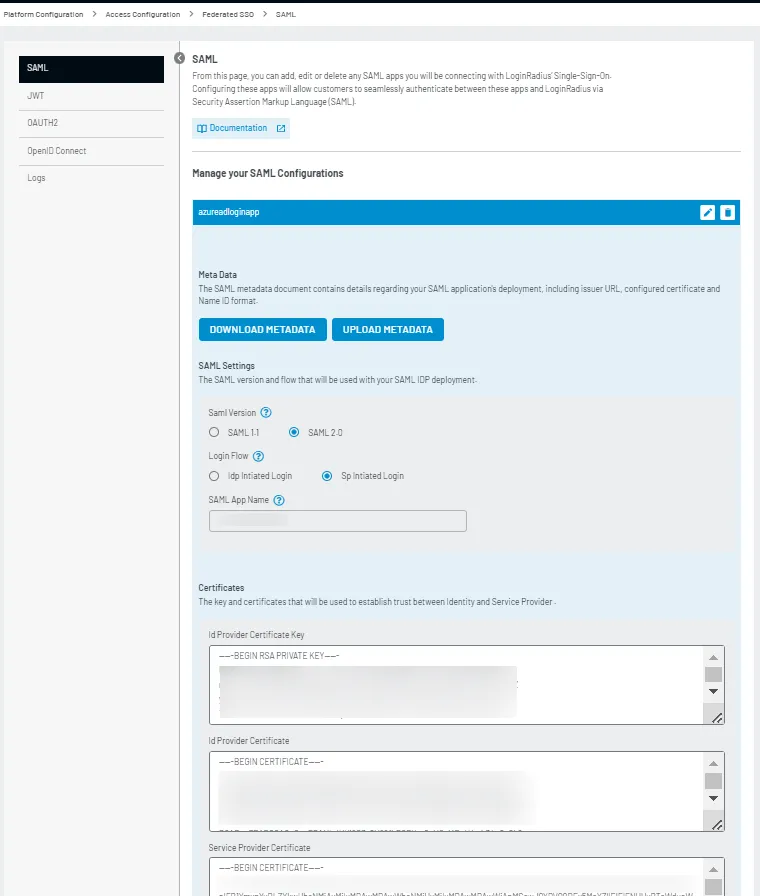

2. Go to Platform Configuration > Access Configuration > Federated SSO.

3. Select the SAML Tab and click on the ‘Add A New APP’ button.

4. Select SAML 2.0 in the SAML Version checkbox.

5. Select Service Provider Initiated Login flow in the Login Flow checkbox.

6. Enter your desired SAML app name in the SAML App Name field.

7. Enter the LoginRadius Certificate key under ID Provider Certificate Key.

8. Enter the LoginRadius Certificate in ID Provider Certificate field.

9. Enter the Office365 Certificate under Service Provider Certificate. Reference https://nexus.microsoftonline-p.com/federationmetadata/saml20/federationmetadata.xml.

Note: Make sure to enclose the certificate in the following format:

-----BEGIN CERTIFICATE----- < Service Provider certificate > -----END CERTIFICATE-----

10. For ATTRIBUTES map the LR fields with Office365 fields.

Name (Office 365 Field)	Format	Value (LoginRadius Field)
NameIdentifier	urn:oasis:names:tc:SAML:2.0:attrname-format:unspecified	Uid
IDPEmail	urn:oasis:names:tc:SAML:2.0 :attrname-format:unspecified	Email

Note: In Value, enter the LoginRadius mapping field name. Get the allowed fields of LoginRadius from here

11. Select urn:oasis:names:tc:SAML:2.0:nameid-format:persistent for Name Id Format.

12. Enter https://<LoginRadius Site Name >.hub.loginradius.com/auth.aspx In Login URL.

13. For AFTER LOGOUT URL enter https://<LoginRadius Site Name>.hub.loginradius.com/auth.aspx?action=logout

14. Enter https://login.windows.net/common/oauth2/logout in the Service Provider Logout URL field.

15. Please enter urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST under DEFAULT REQUEST BINDING

16. Please enter https://login.microsoftonline.com/login.srf under Assertion Consumer Service Location.

17. Please enter urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST under Assertion Consumer Service Binding.

18. For RELAY STATE PARAMETER enter RelayState.

19. Enter https://login.microsoftonline.com/<tenant ID>/ under APP AUDIENCES

Note: For existing Federated SAML, the configuration with the APP Audiences value urn:federation:MicrosoftOnline, will remain unaffected.

20. Select HTTPPost from SSO METHOD.

21. Click Add a SAML App button to add the SAML app.

Download and install the Windows Azure Active Directory Module for Windows PowerShell. Once installed, you will use the cmdlets to configure your Windows Azure AD domains as federated domains. For instructions about how to download and install the cmdlets, see https://technet.microsoft.com/library/jj151815.aspx

Before configuring federation on an Azure AD domain, it must have a custom domain configured. You cannot federate the default domain that is provided by Microsoft. The default domain from Microsoft ends with "onmicrosoft.com".

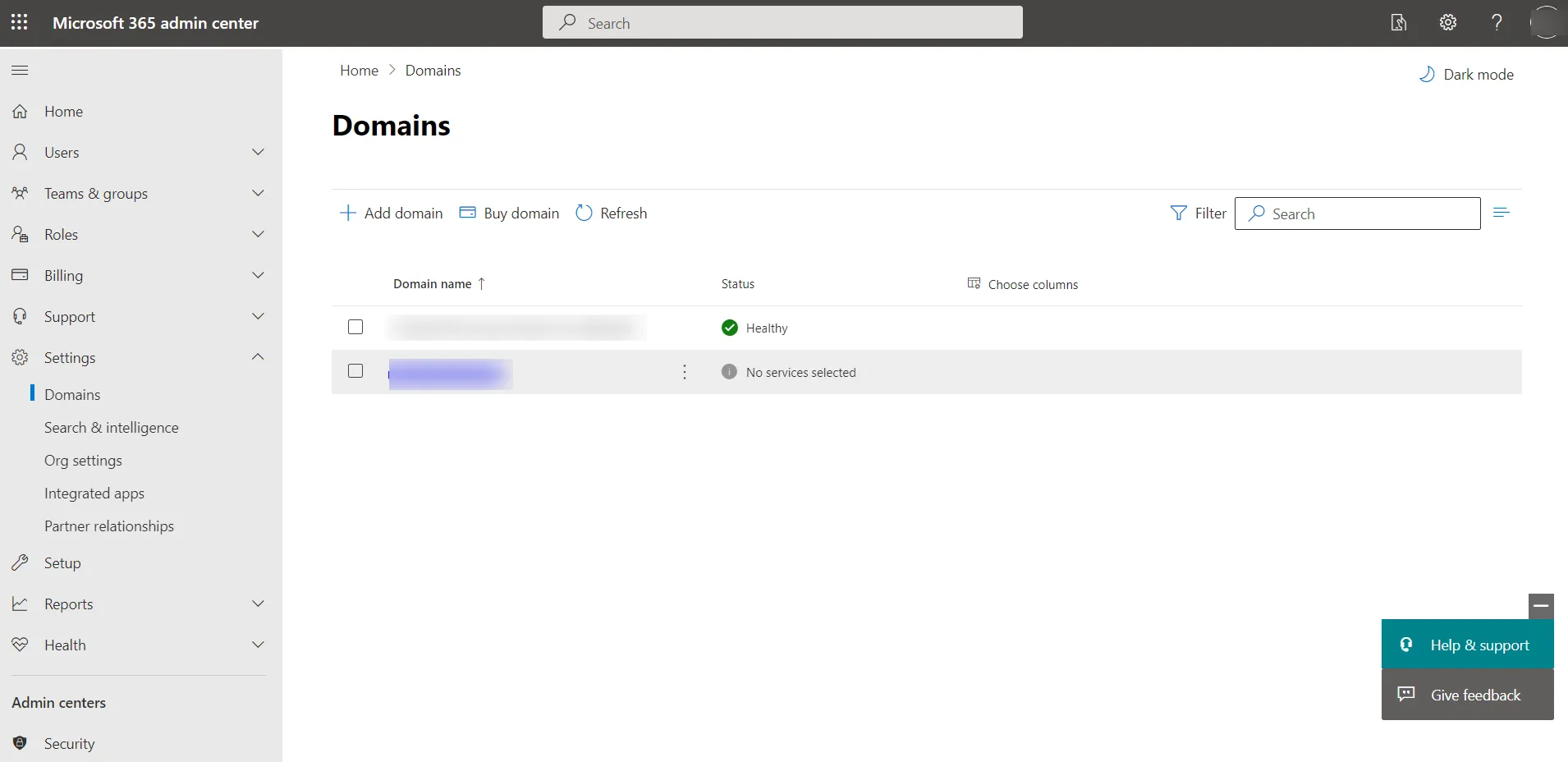

1. Create a managed domain under Settings-> Domains -> Add domain

2. Follow steps to verify ownership of the domain.

3. Ensure that the created domain is NOT the default domain.

This section covers everything you need to configure federated domain on your Office365.

NOTE: If you have enabled or added a Custom Domain for your existing application, please be aware that you should replace the URL https://<LoginRadius Site Name>.hub.loginradius.com/ with https://<Your Custom Domain>/ in fields such as Issuer, EntityID, Login and Logout URLs, or any fields having the same format.

1. Open PowerShell and run the command Connect-MsolService and log in using Office 365 Login credentials.

2. Run command Get-MsolDomain in the PowerShell and ensure the newly created managed domain is listed there.

3. Use the following values for setting up the federated domain:

	$domainname = "<your domain name>"
    $logoffuri = "https://<LoginRadius Site Name>.hub.loginradius.com/service/saml/idp/logout?appname=<SAMLAppName>"
    $passivelogonuri = "https://<LoginRadius Site Name>.hub.loginradius.com/service/saml/idp/login?appname=<SAMLAppName>"
    $cert = "<Your loginradius certficate>"
    $issueruri = "https://<LoginRadius Site Name>.hub.loginradius.com/"
    $protocol = "SAMLP"

Note: You should remove the following from < Your loginradius certficate> content:

• new-line character
• -----BEGIN CERTIFICATE----
• -----END CERTIFICATE-----

4. Run the following command to assign the listed values from the previous step to the federated domain :

Set-MsolDomainAuthentication -DomainName $domainname -FederationBrandName $domainname -Authentication Federated -IssuerUri $issueruri -LogOffUri $logoffuri -PassiveLogOnUri $passivelogonuri -SigningCertificate $cert -PreferredAuthenticationProtocol $protocol

5. Verify that the domain is now set to federated using Get-MsolDomain

6. To modify any of the parameters already set for the domain, switch the domain back to Managed by using the command: Set-MsolDomainAuthentication -DomainName "< your domain name>" -Authentication Managed.

After which (assuming the constants $domainname, $issueruri etc. have already been set, update whichever constant you need to by reassigning a value to it, and call the command:

Set-MsolDomainAuthentication -DomainName $domainname -FederationBrandName $domainname -Authentication Federated -IssuerUri $issueruri -LogOffUri $logoffuri -PassiveLogOnUri $passivelogonuri -SigningCertificate $cert -PreferredAuthenticationProtocol $protocol again.

7. Verify your changes with Get-MsolDomainFederationSettings -DomainName "<your domain name>" | Format-List *

Before you can authenticate your users to Office 365 you must provision Azure AD with user principals that correspond to the assertion in the SAML 2.0 claim. If these user principals are not known to Azure AD in advance then they cannot be used for federated sign-in.

1. Create a new MsolUser with an immutableid corresponding to a LoginRadius UID and with an email using the newly created domain name:

	New-MsolUser
        -UserPrincipalName [email protected]
		-ImmutableId 2e28f6ce-4e3b-4538-b284-1461f9379b48
		-DisplayName "John Doe"
		-FirstName "John"
		-LastName "Doe"
		-AlternateEmailAddresses "[email protected]"
		-UsageLocation "CA"

Note: ImmutableId and -UserPrincipalName in Office365 should match Uid and email in LoginRadius.

2. Assign a license to the newly created user, using

Set-MsolUserLicense -UserPrincipalName "[email protected]" -AddLicenses "licensename".

Note: You can view the currently available license using Get-MsolAccountSku

3. Verify the User details using

Get-MsolUser -UserPrincipalName [email protected] | select UserprincipalName,ImmutableID,WhenCreated,isLicensed

Once the configuration is completed user can Navigate to the https://portal.office.com/ and enter the federated email address,the user will be then redirected to the LoginRadius IDX page for authentication and after successful authentication User get logged in on Office 365.
